Xstamper
Xstamper vX
TAT Stampers
ClassiX
Artline
Rectangle Message Stamp
Xstamper ECO-GREEN rectangular message mounts
-

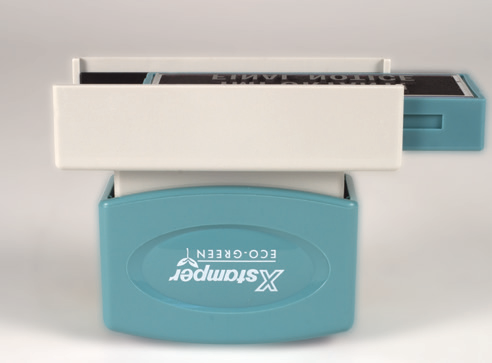

Slide the impression cartridge out of the handle.
-

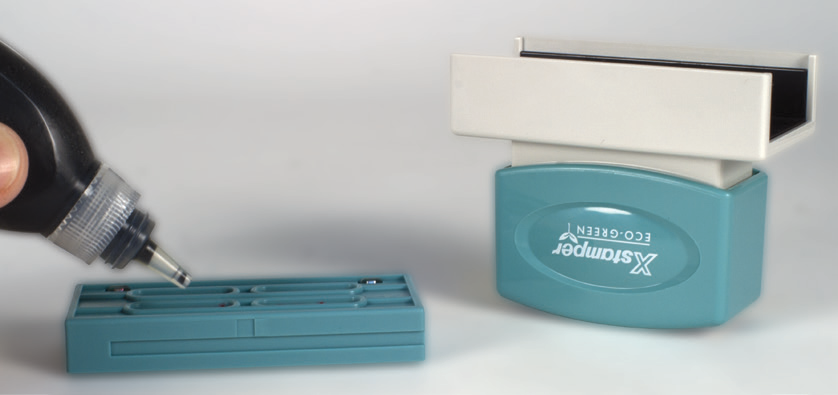

Place 2–3 drops of the same color ink in each of the 4 openings as shown.
Pocket Stamps
-

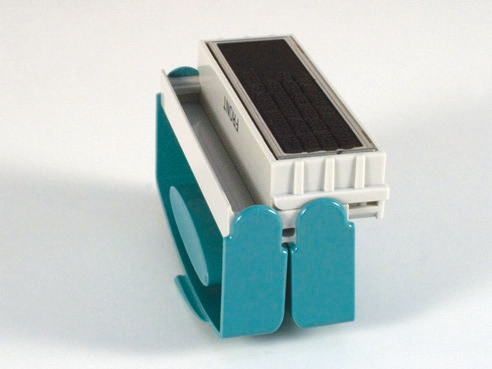

Slide the impression cartridge out of the handle.
-

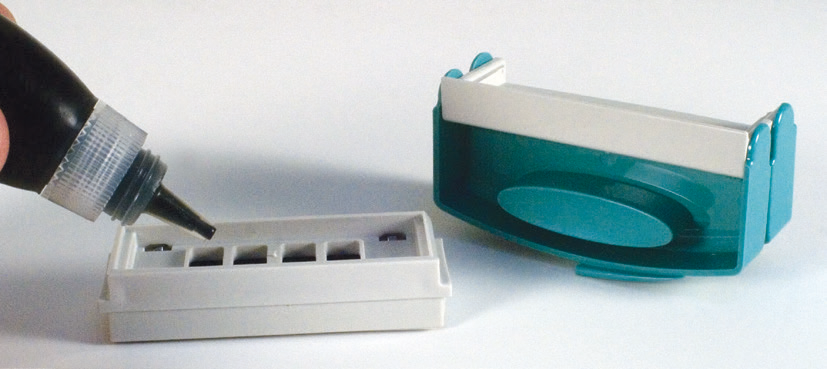

Place 2–3 drops of the same color ink in each of the openings as shown.
Round Stamps
-

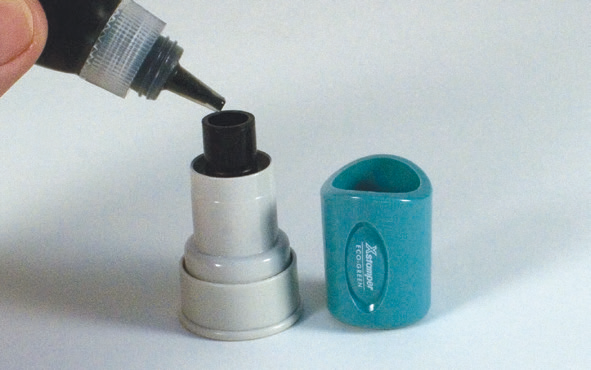

Remove the handle and place 2–4 drops of the same color ink in the opening in the center of the mount.
Round Flip Keychain Stamp
-

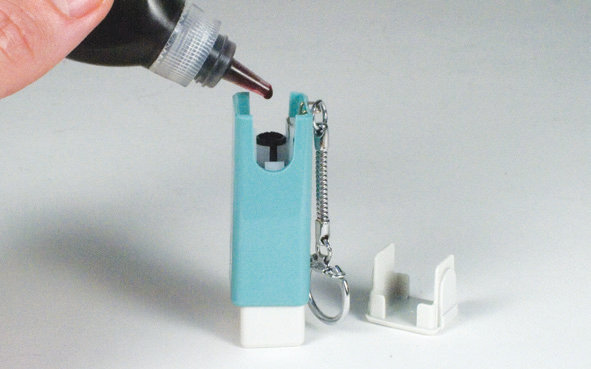

Remove the white cap on top and place 2–4 drops of the same color ink in the opening in the center of the mount.
XpeDater
-

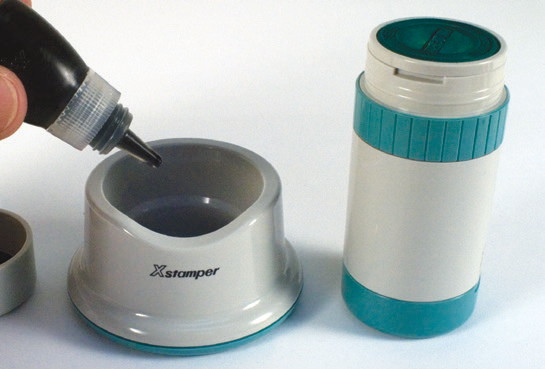

Put a few drops of the corresponding color ink in the XpeDater base, and a few in the travel cap as needed.
VersaDater
-

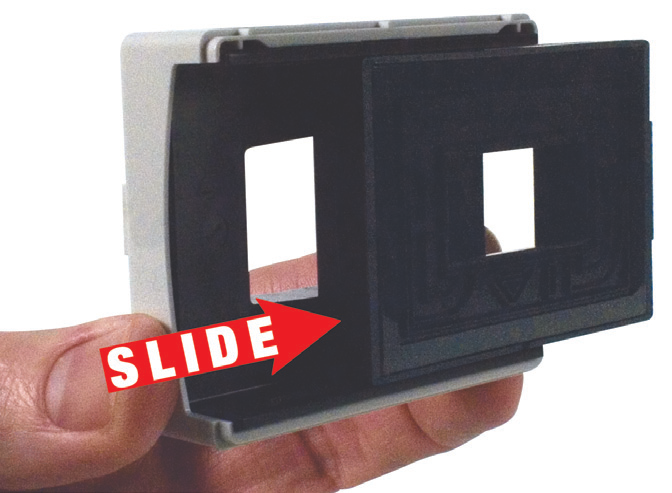

Remove the Impression Frame™ from the line dater and slide the impression cartridge out of the frame as shown.
-

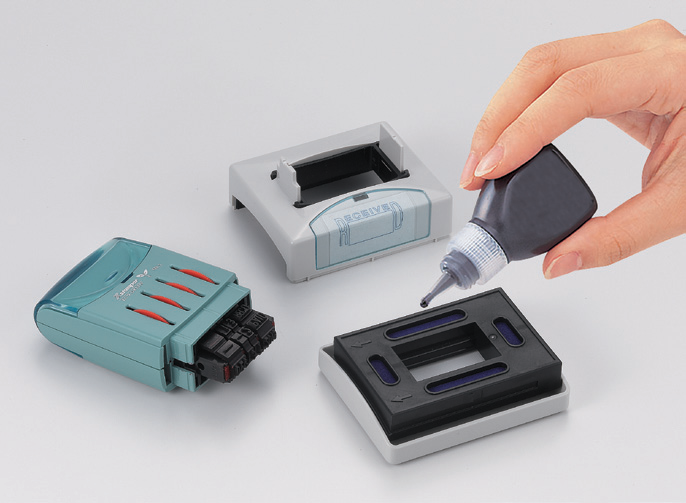

Put 2–3 drops of Xstamper® ink in each channel.
-

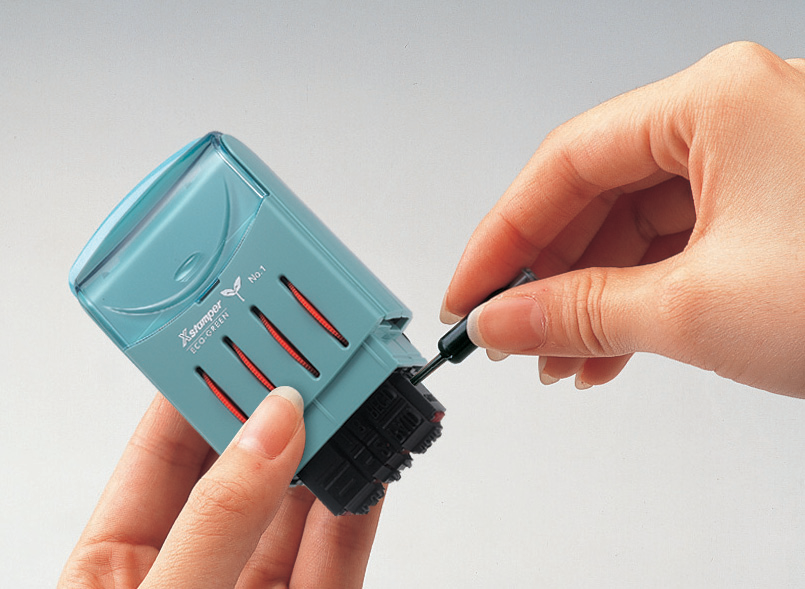

Put 2–3 drops of Xstamper® ink in either re-inking hole. Place the line dater back in the Impression Frame™ and allow the stamp to sit overnight for best results.
Spin'N Stamp
-

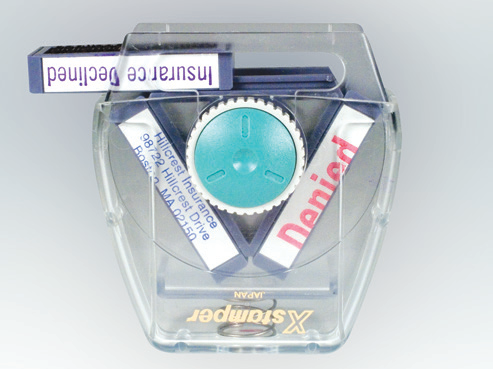

Slide the impression cartridge out of the handle.
-

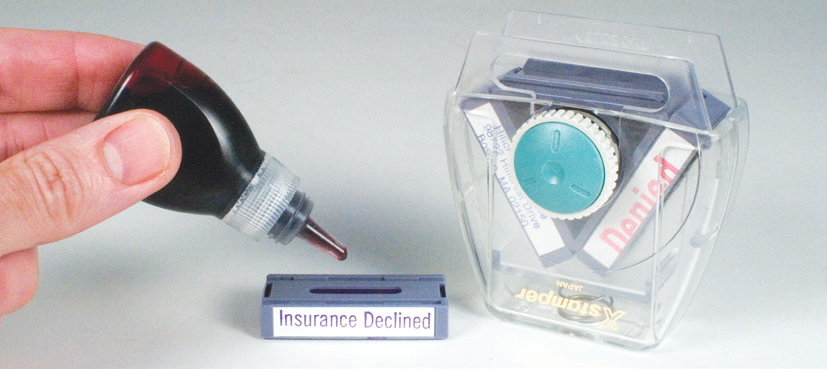

Place 2–3 drops of the same color ink in the opening as shown.
2-Color Die-Plate Stamp
-

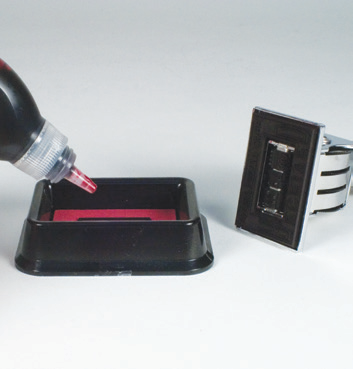

Put a few drops of the corresponding color ink into the stamp base.
Xstamper vX
Message stamps
-

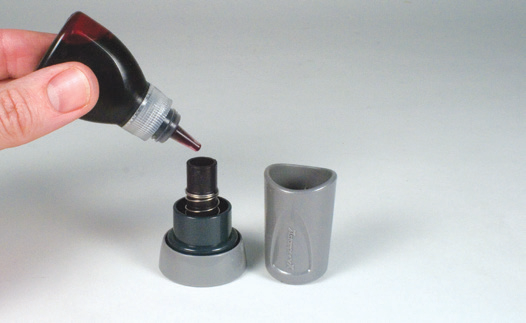

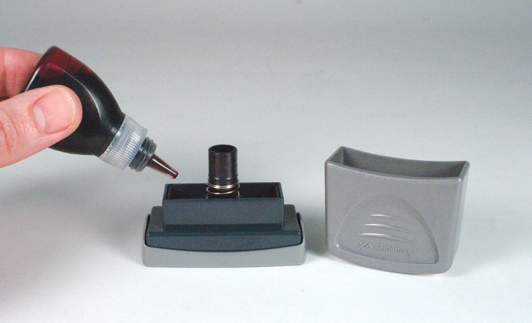

Remove the handle and place 2–4 drops of the same color Xstamper® ink in the openings as shown.
-
Allow the ink to absorb overnight for best results.
Date stamps
-

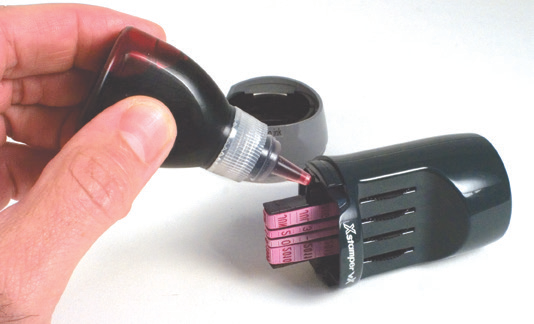

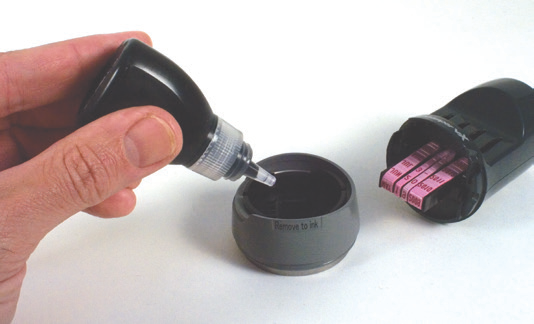

Remove the base and place 2–4 drops of the same color Xstamper® ink in the cap pad, and 2–4 drops of the same color ink in the hole as shown.
-
Allow the ink to absorb overnight for best results.

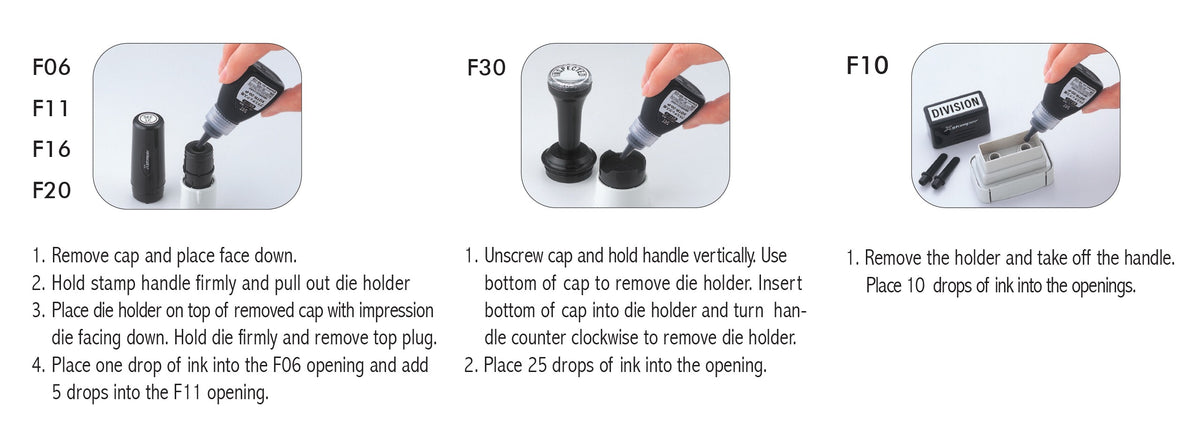

TAT Stampers (F-Series)
-
Model / type A — add about 10 drops of ink.
-
Model / type B — add about 5 drops of ink.
-
Model / type C — add about 25 drops of ink.
Awaiting client content. The three model/type labels and their photos are not present in any reachable legacy source — please supply them so this block can be completed.
ClassiX
Stamps with white locking buttonsButtons on either side of the stamp
-

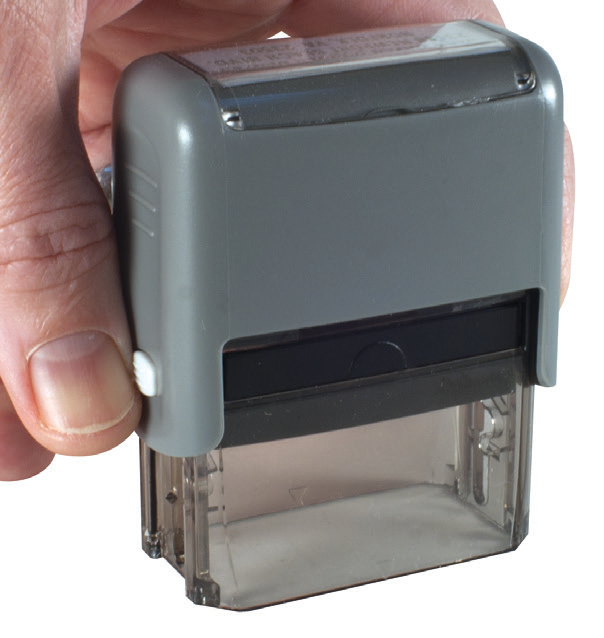

Push down slightly on the top of the stamp and push the white locking buttons on either side. This allows the ink pad to slide out.
-

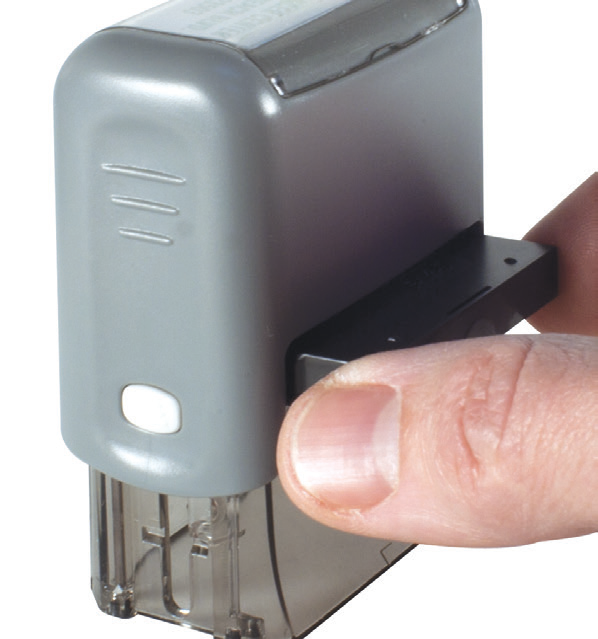

Carefully slide the ink pad out — the inked side will be on the bottom, so take care not to get ink on your fingers.
-

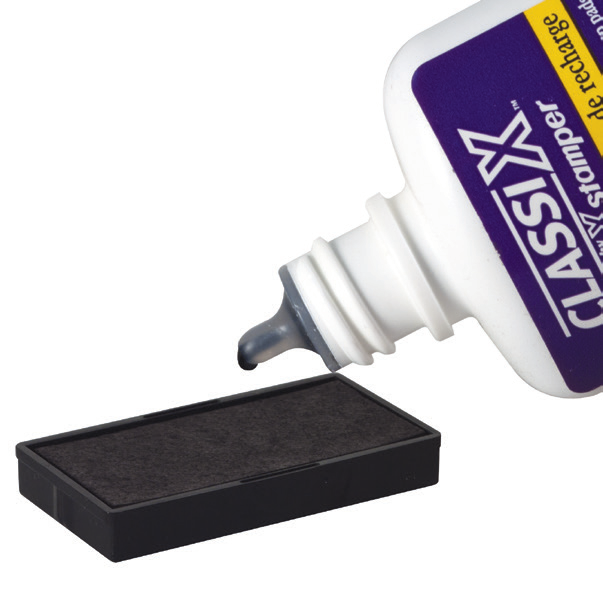

Put a few drops of the same color ClassiX® refill ink onto the pad. For best results, allow the ink to saturate overnight.
Stamps with a black locking buttonSingle button on the front of the stamp
-

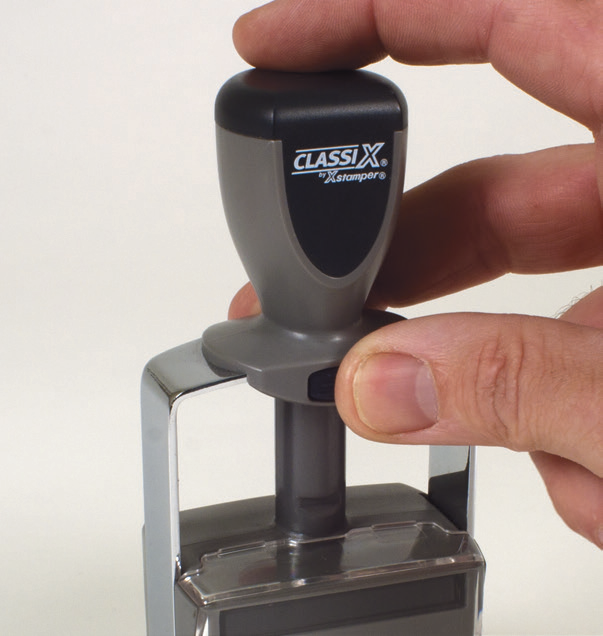

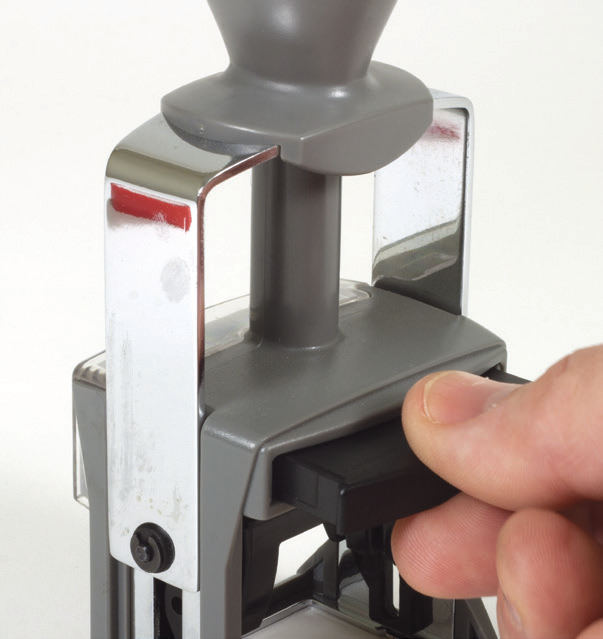

Push down slightly on the top of the stamp and push the black locking button on the front. This allows the ink pad to slide out.
-
Carefully slide the ink pad out — the inked side will be on the bottom, so take care not to get ink on your fingers.
-

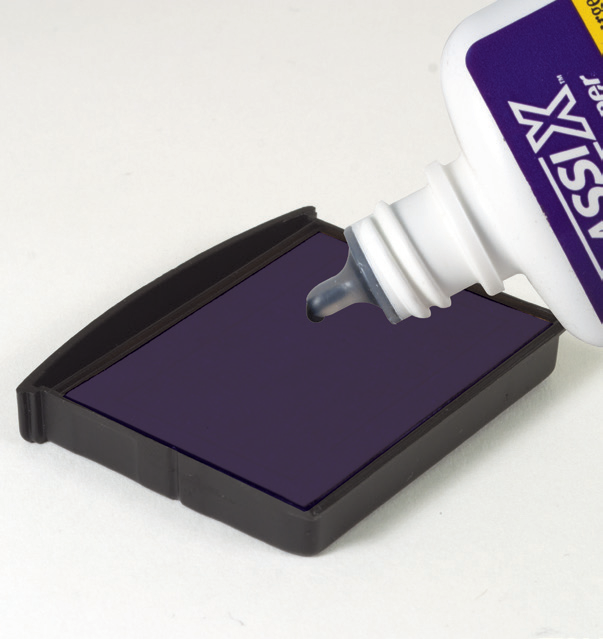

Put a few drops of the same color ClassiX® refill ink onto the pad. For best results, allow the ink to saturate overnight.
Permanent Markers
For use in EK-70, 90, 100, 700, and 710
-

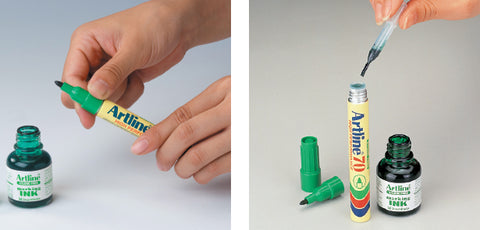

Twist off the nib holder. Refill the proper amount of ink using a syringe. Tighten the holder after refilling.
Whiteboard Markers
For use in EK-500A, 5100A, 5109A
-
Twist off the nib holder.
-
Insert the nozzle into the marker as shown.
-
Squeeze the bottle gently and inject ink into the marker.
ECO-GREEN Markers
Covers both Permanent (EK-177, 199) and Whiteboard (EK-527, 529) — the steps are the same.
-

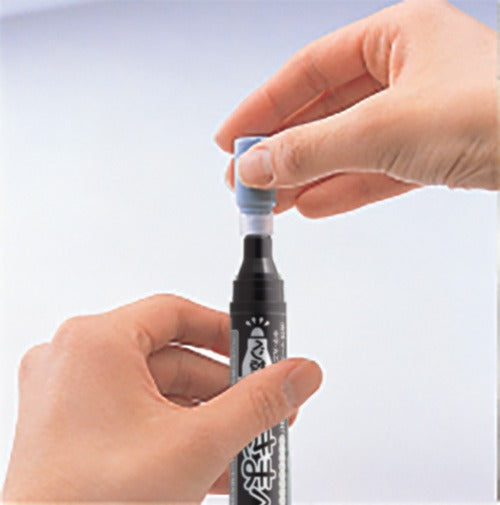

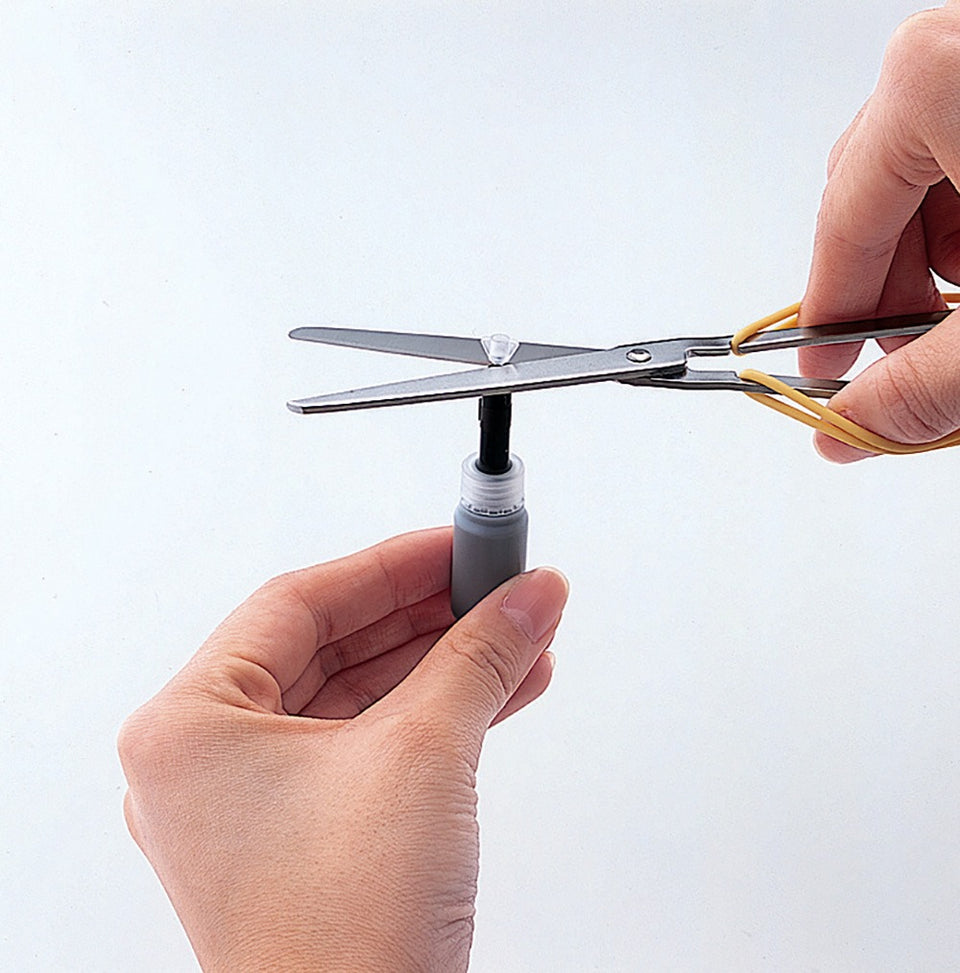

Hold the ink container in an upright position. Gently cut the tab.
-
Insert the nozzle of the refill ink into the marker body. Squeeze gently to inject all the ink into the marker.
